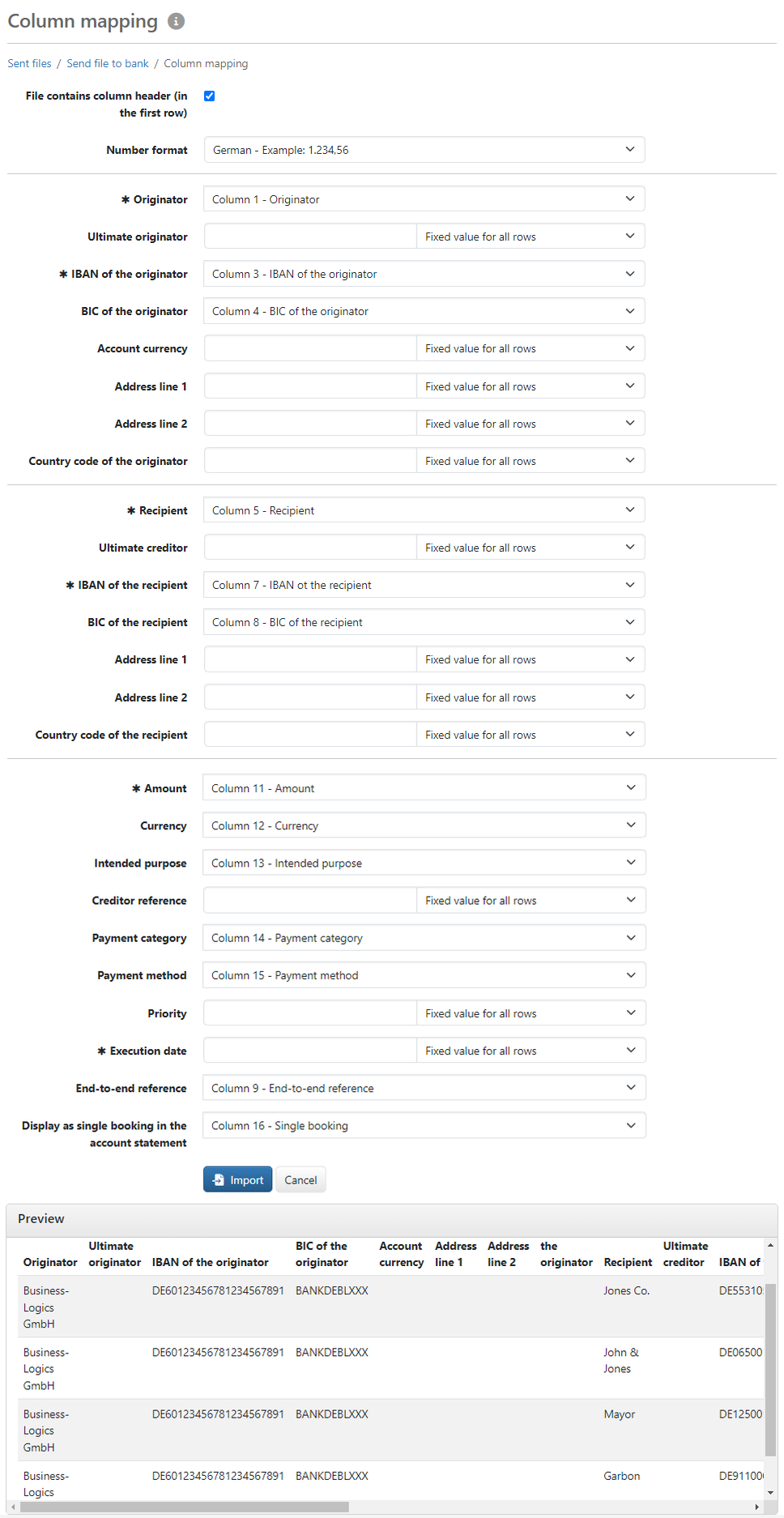

Figure: Form for assigning columns to fields
Before converting a table in CSV or Excel format, you must assign the columns of the table to the fields of the payment. BL Banking Web reads the file and creates a mapping proposal. The fields depend on the selected payment type. To the right of each field, you can either select a column from the table using a drop-down list, leave the field empty or enter a fixed value for some fields below the drop-down list, which will be used for all rows in the table. The easiest way to make the mapping is if the structure of the table is based on the field list.
Use the File contains column header (in the first row) checkbox above the list of fields to set whether the first row of the table consists of column headers. In the Number format field, select the pattern for amounts, i.e. comma or period as decimal separator. The number format does not apply to dates or numbers within a text field.
A preview with the values from the table is displayed below the fields. This makes it easier to map the columns to the fields in the form. BL Banking Web maps the columns in a specific order. If you change the mapping, the preview shows the new configuration.
In principle, CSV files can contain different separators for columns, however the separator must not appear in the content. BL Banking Web expects a semicolon as a separator, taking into account the notation of amounts with a decimal point (single) or with a comma as a decimal or thousands separator (German or English number format). BL Banking Web cannot interpret the table format for incorrectly structured files with invalid or inconsistent separators. If the preview does not show any columns or the content has been moved to other columns, the file must be re-exported by the external program. Alternatively, the table format can be corrected using an appropriate editor.
After mapping all columns, click on Import. BL Banking Web checks the validity of the values in the mapped columns. If the values are invalid, you will receive a message with processing instructions. The import must be completed within a short time. Otherwise, the file will be deleted from the server and you will be asked to restart the process.
Figure: Form for assigning columns to fields
